Healthiness for Earth and You

CHROMALUXⓇ ZEROⓇ

Features & Information

Thanks to its PVC-free material the CHROMALUX® ZERO ® is sustainable, recyclable and meets drinking water requirements. The hose is extraordinarily flexible and thus very easy to handle.

PVC-free ・ Sustainable ・ Recyclable

Design

Color

Silver

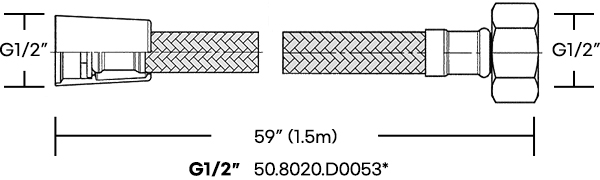

Product Size

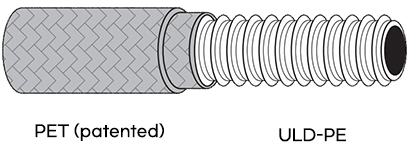

Materials

  • - Out-Side : Poly-Ethylene Terephthalate(patented)
  • - In-Side : Poly- Ethylene Ultra Density

Application

  • SHOWER

  • SHATTAF

Product Standards

EN 1113, ASME A112.18.1 / CSA B125.1

Attainable Approvals and Certificates

  • - Hygienic : KTW-BWGL, ACS, WRAS (BS6920), KIWA-Watermark
  • - Mechanical : DVGW, NF, KIWA, cUPC

Technical Specification

  • Operating temperature
    -5 to +60℃     23to 140℉
  • Recomm. working pressure
    4 bar     58 psi
  • Max. working pressure
    7.5 bar     109 psi
  • Tensile strength
    >800 N     >180 lbf
  • Bending radius
    25mm     1.0˝
  • Outer diameter (braided)
    >Max. 14.8mm     0.6˝
  • Inner diameter (hose)
    8.5mm     0.3˝
  • Flow rate at 1.5m length
    19.0 l/min   at   3 bar

    according to DIN EN 1113

  • Pressure jump resistant(23℃)
    Up to 16bar     232psi

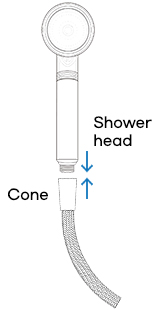

How to Install

Note

  • - Shower holder, Teflon Tape included.
  • - All shower hoses are supplied with plastic caps to protect the cones.
  • - Revolving connections prevent the hose from becoming twisted in the shower area.
